Full-Scale Load Testing Services in India

Full-Scale Load Testing in India for Bridges and Buildings by VCEPL Consulting

In line with our hallmark dedication and accuracy in the other technical services, our full-scale load testing in India has gained such a reputation that we receive repeated referral commissions for bridges and buildings across the country.

Structural distresses are literally distressing. A random shear-crack, flexural crack, excessive deflection or vibration can raise questions against the integrity of the structure. Even a non-structural shrinkage crack can cause serious concern to a non-technical user of the structure. These are times where one way or the other, trust needs to be rebuilt, and the most definitive way to do so is by putting the structure to the test against its original design loads.

Full-scale load testing is very serious matter and must only be done by proficient licensees. A lapse in structural assessment and analysis could lead a consultant to believe that the structure can safely tested for full load. There are cases where entire spans of bridges have collapsed with loads much lesser than the full design load, just because of a small construction fault in the alignment of bearings. Apart from the economical impact, reputation is also at stake.

Backed by detailed technical understanding, relevant Indian guidelines and experience of hundreds of full-load testing projects, Vijna stands tall among others when it comes to restoration of trust on a structure. Thanks to our SHM vertical, we have full static and dynamic load testing capabilities with instruments that surpasses the industry standards by a long mile.

In essence, numerous state governments and private asset owners have laid their trust on Vijna, owing to our impeccable track record in load testing. Contact us to know more about performing a full load test at your structure.

Specialized Instruments and Monitoring Tools:

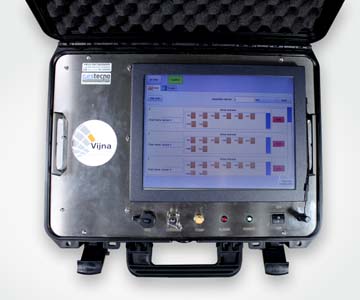

High performance 18 channels portable touchscreen DAQ for static performance analysis

Ultra-high performance DAQs, total 100+ channels, for dynamic performance analysis

Japanese strain gauges and rosettes for concrete and steel

High precision vibrating wire strain gauges

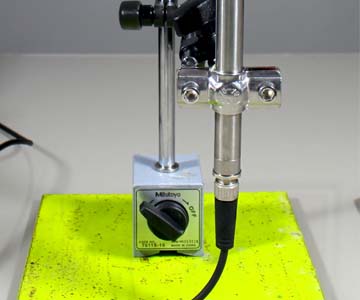

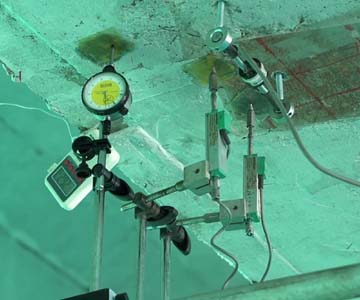

IP68 rated stainless steel LVDTs of 100mm range, with least count 0.001mm

Imported accelerometers and tiltmeters

Bearing sensors for bridges

Frequently Asked Questions

Q1. What is full-scale load testing, and when is it needed for a structure?

Full-scale load testing is the process of physically applying loads to a structure equal to or close to its design load and measuring its response in terms of deflection, strain, vibration, and recovery. It is typically commissioned when there is a concern about a structure's actual capacity, following distress events such as cracking or excessive deflection, for clearance of new construction, or for compliance with regulatory requirements before a bridge or building is put into service. Load testing in India is also frequently required by state governments before certifying newly built or rehabilitated bridges for public use.

Q2. Why should load testing only be carried out by experienced professionals?

Load testing is inherently high-risk if not planned and executed by experienced engineers. There are documented cases where bridges have collapsed under test loads significantly lower than the design load due to undetected construction faults such as misaligned bearings. A competent testing agency must carry out a detailed pre-load assessment to determine whether the structure is safe to test at all, and must have the instrumentation capability to monitor the structure's response in real time throughout the test. Our team combines structural analysis expertise with professional-grade SHM instruments to manage this process safely.

Q3. What instruments does Vijna Consulting Engineers Pvt. Ltd. use for full-scale load testing in India?

Vijna Consulting Engineers Pvt. Ltd. uses a comprehensive suite of instruments for load testing, including an 18-channel portable touchscreen DAQ for static analysis, ultra-high performance DAQs with over 100 channels for dynamic analysis, Japanese strain gauges and rosettes for concrete and steel, high-precision vibrating wire strain gauges, IP68-rated stainless steel LVDTs, imported accelerometers and tiltmeters, and dedicated bearing sensors for bridges. This instrumentation significantly exceeds what is typically available with standard load testing contractors in India.

Q4. Can Vijna Consulting Engineers Pvt. Ltd. carry out both static and dynamic load testing?

Yes. Vijna Consulting has full capability for both static and dynamic load testing. Static load testing involves applying loads incrementally and measuring deflection and strain over time to assess the structure's stiffness and residual capacity. Dynamic load testing involves applying moving or impulse loads and analysing the frequency response, damping behaviour, and dynamic amplification of the structure. Both types of tests are relevant for bridges, and Vijna’s structural health monitoring instrumentation makes it possible to execute and interpret both with precision.

Q5. How does Vijna Consulting Engineers Pvt. Ltd. report the results of a load test?

Following the load test, Vijna Consulting prepares a detailed technical report that documents the pre-test structural condition, the loading protocol followed, the instrument readings at each load stage, the observed and calculated deflections and strains, and a comparison with the allowable limits specified in the relevant Indian codes. The report includes a clear structural verdict and recommendations, which can be used for regulatory clearance, insurance purposes, or as the basis for a retrofit decision if the structure does not perform as expected.
